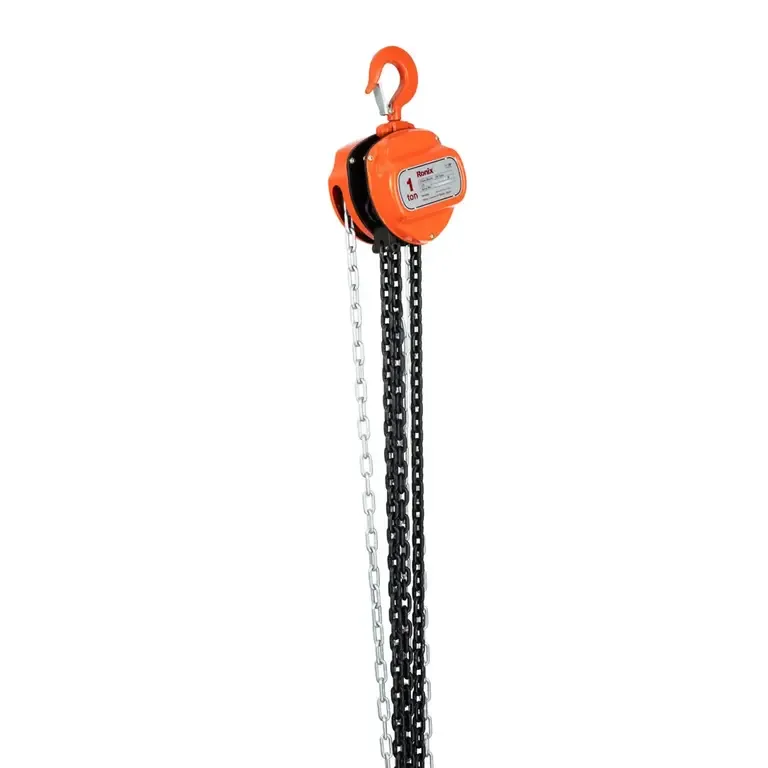

رافعة يدوية 1 طن

الكود: RH-4102 الماركة: Ronix التصنيف: رافعة سلسلة

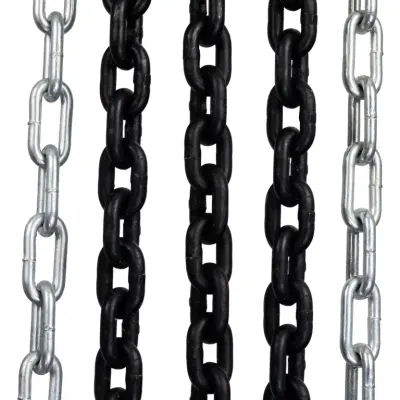

Ronix RH-4102 is a chain block equipped with grade 80 steel alloy chains and forged steel hooks that will bend to indicate overload.

200,000 د.ع
متوفّر
توصيل لكل المحافظات الدفع عند الاستلام ضمان رسمي
Chain blocks are mechanical devices used for lifting and lowering heavy loads in a controlled manner. They consist of a chain, a set of pulleys, and a lifting mechanism. The chain is wrapped around the pulleys, and as the user pulls on the chain, it engages the lifting mechanism, allowing for the vertical movement of the load. Chain blocks are designed to provide mechanical advantage, making it easier to lift heavy objects. They are commonly used in construction, manufacturing, warehouses, and other industrial settings where heavy lifting is required. Ronix RH-4102 is also a chain block that can lift a maximum load of 1T at a standard lift of 1.7m.

Model RH-4102
Capacity (tonnes) 1 T
No. of falls 1
Load chain (mm) 6x18
Pull to lift rated load 304 N
Proof load (tonnes) 1.5 T
Hand chain (mm) 5x25x17
Standard lift (m) 1.7
Net Weight 10.5 kg
Gross weight 11 kg
Extra lift per weight 1.7 kg
