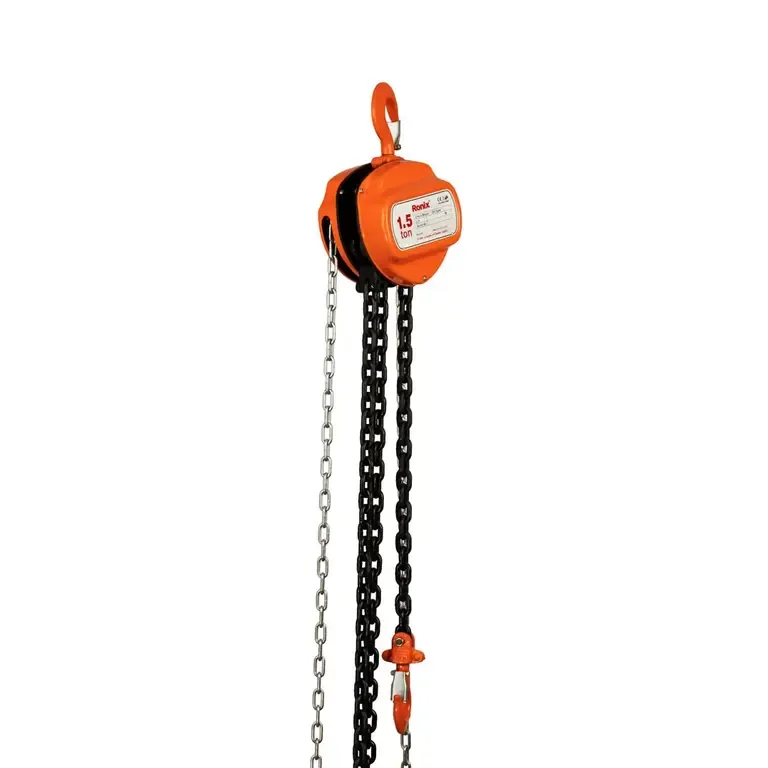

رافعة يدوية 1.5 طن

الكود: RH-4103 الماركة: Ronix التصنيف: رافعة سلسلة

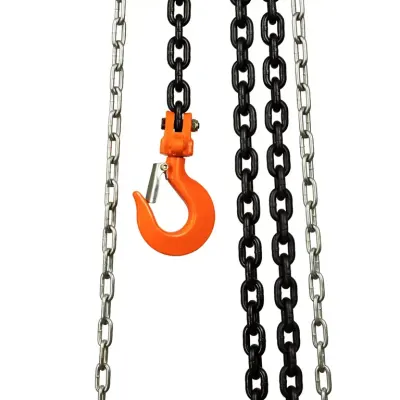

Ronix RH-4103 is a chain block armed with grade 80 steel alloy chains and drop-forged steel hooks with a maximum capacity of 1.5T.

200,000 د.ع
متوفّر
توصيل لكل المحافظات الدفع عند الاستلام ضمان رسمي
Chain blocks, also known as chain hoists or manual chain hoists, are mechanical devices designed for lifting and lowering heavy loads safely. They work by utilizing a chain and pulley system to apply mechanical advantage and multiply the input force. The chain block consists of a chain that is looped around a set of gears and a lifting hook attached to the load. By pulling the chain in one direction, the gears engage and lift the load. Operating as discussed, Ronix RH-4103 is another member of our lineup of chain blocks that can help you lift loads as heavy as 1.5T. Armed with grade 80 steel alloy chains and drop forged steel hooks, Ronix RH-4103 plans to be the last chain block you will ever buy.

Model RH-4103
Capacity (tonnes) 1.5 T
No. of falls 1
Load chain (mm) 8x24
Pull to lift rated load 343 N
Proof load (tonnes) 2.25 T
Hand chain (mm) 5x25x17
Standard lift (m) 2.3
Net Weight 16 kg
Gross weight 16.5 kg
Extra lift per weight 2.3 kg
